Calandra combined with shear and bending models: SAR 750 and SAR 1000
Construction features:
-
Solid steel construction with a modern design
-
The blades of the bending machine for machining of box-sectioned
-
The movements of the machine are controlled by the side levers drives manuals
-
A large surface for machining of large size
-
Adjustable back gauge
-
Platform support front
Specification:
| Model |
SAR 750 |
SAR 1000 |
| Article |
1120Q0750 |
1120Q1000 |
| Diameter of trees calendering |
38 mm |
42 mm |
| Width |
1170 mm |
1420 mm |
| Depth |
565 mm |
565 mm |
| Hight |
790 mm |
790 mm |
|
Calandering
|
|
|
| Max. material |
763 mm |
1016 mm |
| Diam min. calandrabile |
38 mm |
42 mm |
| Diam max. calandrabile |
infinito |
infinito |
|
Thicknesses calandrabili
|
|
|
| Sheet steel 37 |
1 mm |
1 mm |
| Steel high quality |
1 mm |
1 mm |
| Aluminum / copper |
2 mm |
2 mm |
| Brass |
1 mm |
1 mm |
| Sheet of tin / silver / gold |
2 mm |
2 mm |
| Tubing and wire calandrabile |
4,5-7-10 mm |
4,5-7-10 mm |
|
Bending
|
|
|
| Maximum thickness sheet |
2,5 mm |
2,5 mm |
| Muzzles sectors (mm) |
40 - 50 - 65 - 100 180 - 225 - 380 |
40 - 50 - 65 - 100 180 - 225 - 380 |
|
Thicknesses folding
|
|
|
| Aluminum / copper |
763X2 mm |
1016x2 mm |
| Sheet steel |
763x1 mm |
1016x1 mm |
|
Cutting
|
|
|
| Width to thickness |
763x 1mm |
1016x1 mm |
|
Prices
|
€ 1.280,00 |
€ 1.409,00 |
| Request the availability |
10 days |
10 days |
"Click on the pictures you can access the explanations of the various"
|
|
It will stand for 1000
|
|
It will stand for 750
|
|
|
|

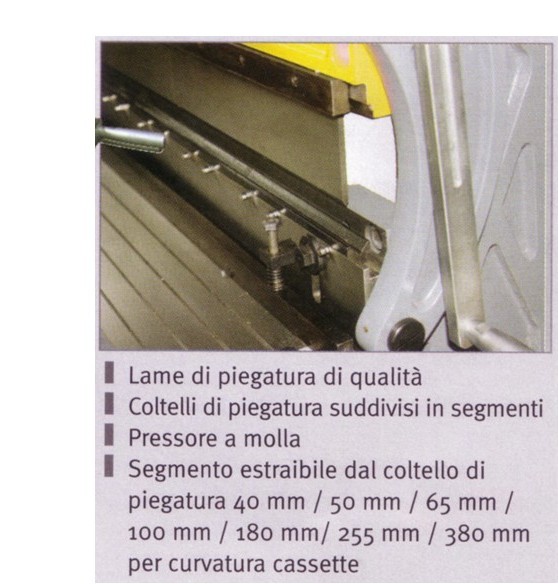

Blades piagatura quality
|
 |
Adjustment screw material
|
|
|
|

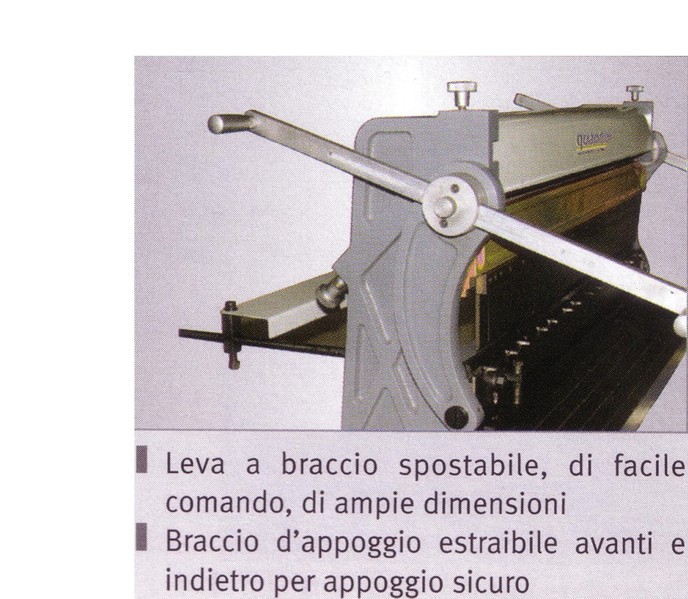

Arm lever movable
|
|

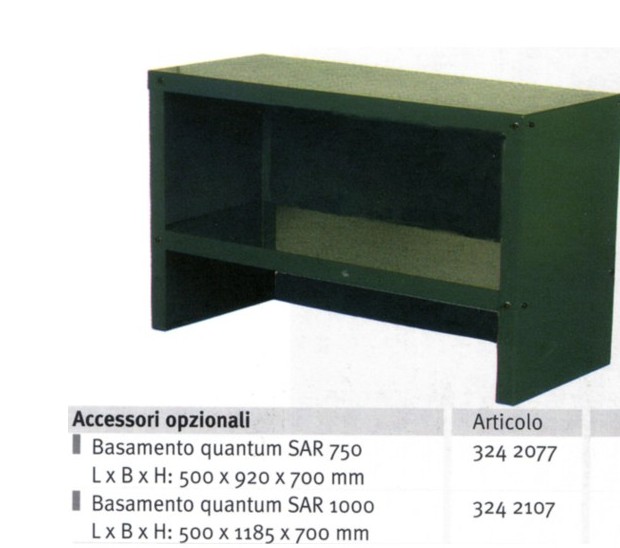

Accessories:
- Base for size 750 Sar (Art. 3242077)
- Depth 500 mm
- Width 920 mm
- Height 700 mm
- Price € 280,00
- Base for 1000 Sar size (Art. 3242107)
- Depth 500 mm
- Width 1185 mm
- Height 700 mm
- Price € 320,00
|
If you want to display the full page of the catalog, click on this written
|
