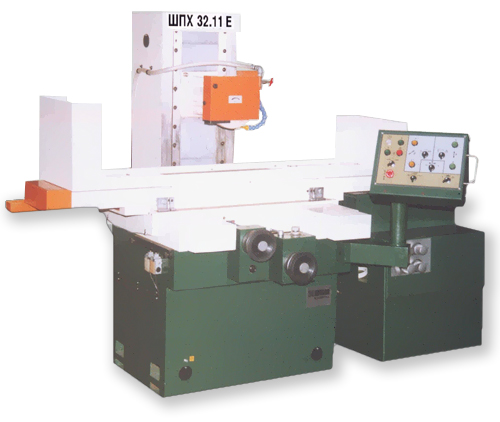

Surface grinding machine with hydro-mechanical control Mod. SHPH 32.11 E
Click for a full size photo
| Technical data |
|
|
|
| Electro-magnetic table |
mm |
|
630x200 |
| Max. grinding high (with new disc) |
mm |
|
360 |
| Grinding wheel |
|
|
|
| - Dimensions |
mm |
|
250x40x76 |
| - Peripheral speed |
m/s |
|
35 |
| Longitudinal table travel speed range |
m/min |
|
1,5-25 |
| Wheelhead: minimum downfeed with heandwheel |
mm |
|
0,001 |
| Automatic downfeed |
mm/rev |
|
0,001-0,045 |
| Cross table: traverse feed range |
|
|
|
| - Intermittent |
mm/str |
|
0,1-15 |
| - Continuous |
m/min |
|
0,25-1,3 |
| Rapid traverse speed |
|
|
|
| - Vertical |
m/min |
|
0,24 |
| - Cross |
m/min |
|
1,6 |
| Main motor power |
kW |
|
3,2/4 |
| Net weight of the machine |
kg |
|
3000 |
| Normal accessories |
|
|
| - Electric equipment |
|
- Sharpening device |
| - Electro-magnetic table |
|
- Cooling device |
| - Table protection |
|
- Machine maintenance tool kit |
| - Working lighting |
|
- Quick-wearing spare parts |
| - Balancing stand and arbor |
|
- Operation manual |
| - Grinding wheel with flange |
|
- Packing on wooden skid covered with polyethylene |
| Main machine unit price: |
€ 13.340,00 |
| Special accessories |
|
| - Vertical travel reading attachment |
€ 180,00 |
| - Precise vice |
€ 375,00 |
| - Angle-sharpening device |
€ 143,00 |
| - Digital readout on "Z" axis |
€ 720,00 |
| - Digital readout on "Y" axis |
€ 650,00 |
| - Digital readout on "Z" and "Y" axes |
€ 1.240,00 |
|
