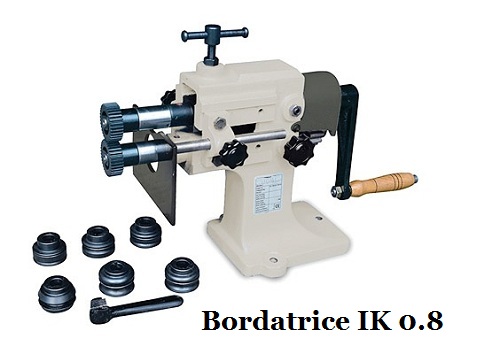

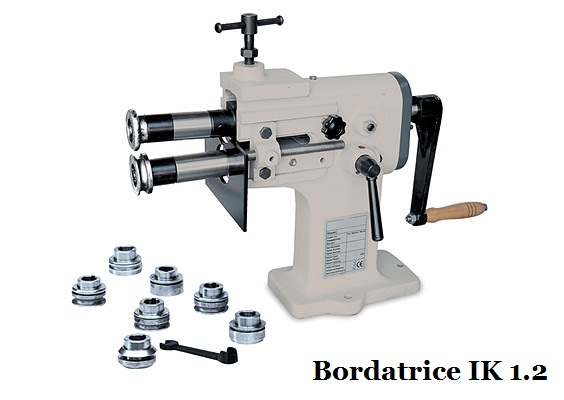

Steel plate border machines IK 0.8 e IK 1.2
Construction characteristics for IK 0.8:
- Cast iron heavy duty main frame
- Adjustable side support
- Reduction motor with brake system
- Easy to carry for workshops
- Adjustable idle roll
- 7 set of rolls standard
- Built according to EC Safety Directives
Price € 495,00
IK 0.8 Technical characteristics
| Shaft length mm |
110
|
| Beading capacity mm |
0.8
|
| Roll Diameter mm |
52
|
| Throat Depth mm |
80
|
| Length mm |
380
|
| Width mm |
180
|
| Height mm |
380
|
| Weight kg |
30
|
| Product is ready |
|

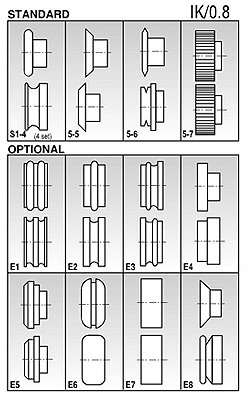

| Rolls IK 0.8 |
 |
Construction characteristics for IK 1.2:
- Cast iron heavy duty main frame
- Adjustable side support
- Reduction motor with brake system
- Easy to carry for workshops
- Movement by foot pedal
- Adjustable idle roll
- 8 set of rolls standard
- Built according to EC Safety Directives
Price € 555,00
IK Technical characteristics
| Shaft length mm |
140
|
| Beading capacity mm |
1.2
|
| Roll Diameter mm |
62
|
| Throat Depth mm |
100
|
| Length mm |
560
|
| Width mm |
220
|
| Height mm |
500
|
| Weight kg |
50
|
| Product is ready |
|

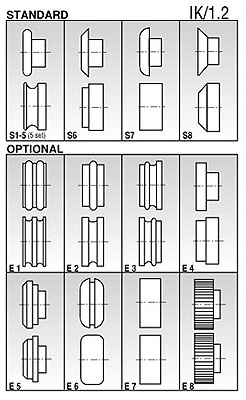

| Rolls IK 1.2 |
 |
